Annotating image through action interface

Prerequisites

• We assume that the annotation server has been installed.

• We assume that a "default" server is configured in the auth.txt. (see previous tutorial on how to set it up)

Linking remote topics

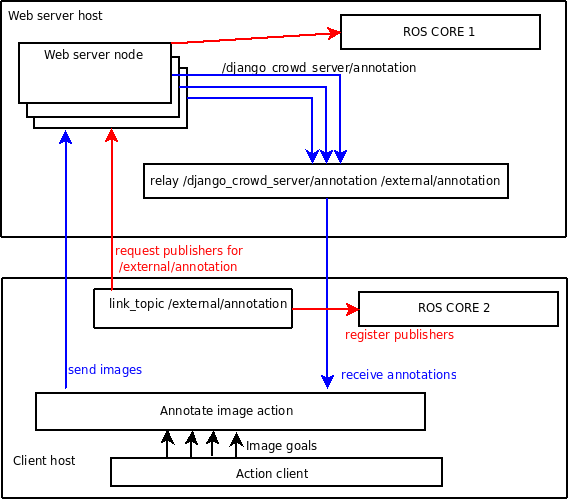

The system has two loosely coupled parts: web server and the client host:

Each host has its own ROS core and the cores don't communicate directly. The web server publishes all annotations on /django_crowd_server/annotation topic. As there will be one publisher for each web server process, we relay all annotation messages on the server side to the single topic /external/annotation .

The client doesn't have any knowledge about the remote topic publishers. To be able to listen to these, we need to link the remote topic into the local core. To do so, we launch a link_topic node:

 <node pkg="mech_turk_ros" type="link_topic.py" name="link_topic">
        <param name="server" value="default"/>
        <param name="remote_topic_name" value="/external/annotation"/>
 </node>

Running action server

The action server needs to know only server name, server session and the annotation topic that the server will use:

  <node pkg="mech_turk_ros" type="annotate_image_action_server.py" name="annota\
te_image_action" output="screen">
        <param name="annotation_topic" value="/external/annotation"/>
        <param name="server" value="default"/>
        <param name="session" value="my-first-session"/>
  </node>

Once we launch the action server, we can send goals to it and check on the goal status. When the annotation arrives from the server, the goal will succeed.

Sending and receiving goals

The action interface is very easy to use. All we need is to create an action_client (don't use simple_action_client !) and send some images:

   1 client = ActionClient("annotate_image_action",AnnotateImageAction);
   2 image  = cv.LoadImage(image_name)
   3 image_message = CvBridge().cv_to_imgmsg(image)
   4 image_message.header.stamp=rospy.get_rostime()
   5 goal   = AnnotateImageGoal(image_message)
   6 gh     = client.send_goal(goal);

To run the complete code, go to mech_turk_ros and run "make test" to download the test data:

roscd mech_turk_ros
make test
cd test_data
tar xvzf five_images_with_people.tgz

Then launch the action node and the link topic. This code will use my-first-session session on default server. Edit the launch file to change those:

roscd mech_turk_ros/test/tutorial/
roslaunch annotate_image_action.launch

Now we are ready to submit images:

./annotate_jpeg_images_via_action.py ../../test_data/five_images_with_people/*.jpg

You will see a stream of status messages:

[INFO] 1266865578.995343: Total goals: 5 (active: 2, succeeded: 0, aborted: 0)
[INFO] 1266865579.497386: Total goals: 5 (active: 3, succeeded: 0, aborted: 0)
[INFO] 1266865579.998994: Total goals: 5 (active: 4, succeeded: 0, aborted: 0)
[INFO] 1266865580.500433: Total goals: 5 (active: 4, succeeded: 0, aborted: 0)
[INFO] 1266865581.002143: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865581.503550: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865582.005283: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865582.506859: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865583.008502: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865583.510212: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)

Now go to Mechanical Turk Sandbox and submit something to your HITs. As you do this, you will see the goals succeed:

[INFO] 1266865593.543404: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
......
[INFO] 1266865594.045152: Total goals: 5 (active: 5, succeeded: 0, aborted: 0)
[INFO] 1266865594.546576: Total goals: 5 (active: 4, succeeded: 1, aborted: 0)
......
[INFO] 1266865605.583602: Total goals: 5 (active: 4, succeeded: 1, aborted: 0)
[INFO] 1266865606.085143: Total goals: 5 (active: 3, succeeded: 2, aborted: 0)
........
[INFO] 1266865612.606854: Total goals: 5 (active: 3, succeeded: 2, aborted: 0)
[INFO] 1266865613.108561: Total goals: 5 (active: 2, succeeded: 3, aborted: 0)
........
[INFO] 1266865619.128123: Total goals: 5 (active: 2, succeeded: 3, aborted: 0)
[INFO] 1266865619.629856: Total goals: 5 (active: 1, succeeded: 4, aborted: 0)
........
[INFO] 1266865625.651012: Total goals: 5 (active: 1, succeeded: 4, aborted: 0)
[INFO] 1266865626.152690: Total goals: 5 (active: 0, succeeded: 5, aborted: 0)
